Lilygo T-2CAN
Tap to expand

Lilygo T-2CAN

Visit official site
Medium confidence
Why this?

The LILYGO T-2CAN is an ESP32-S3 development board with dual isolated CAN bus interfaces, 16MB Flash,…

Good for
  • Low price
  • Good quality
  • Affordable price at $32.98
Skip if
  • ×No support for CAN-FD
  • ×Does not support CAN-FD
  • ×Screw terminals instead of plug terminals
Best price from 3 sellers
$19.99
at TindieView deal All offers from Tindie

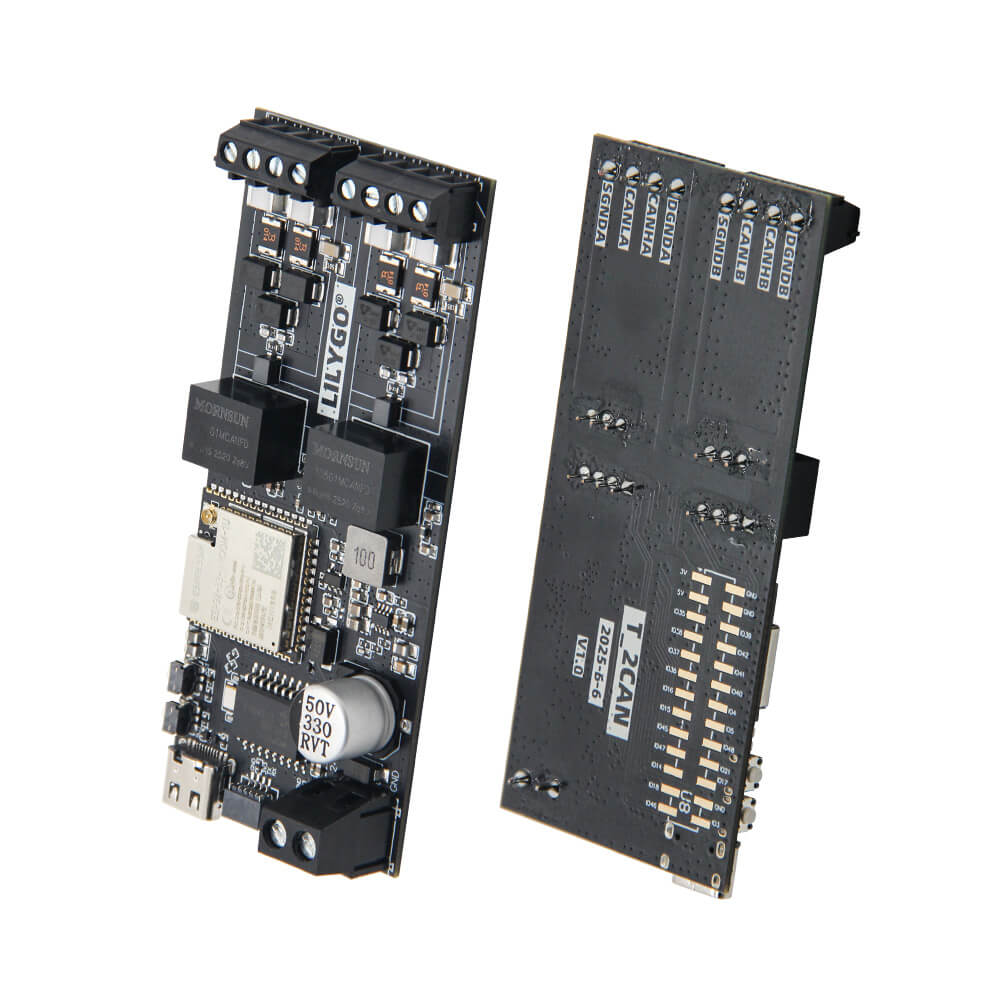

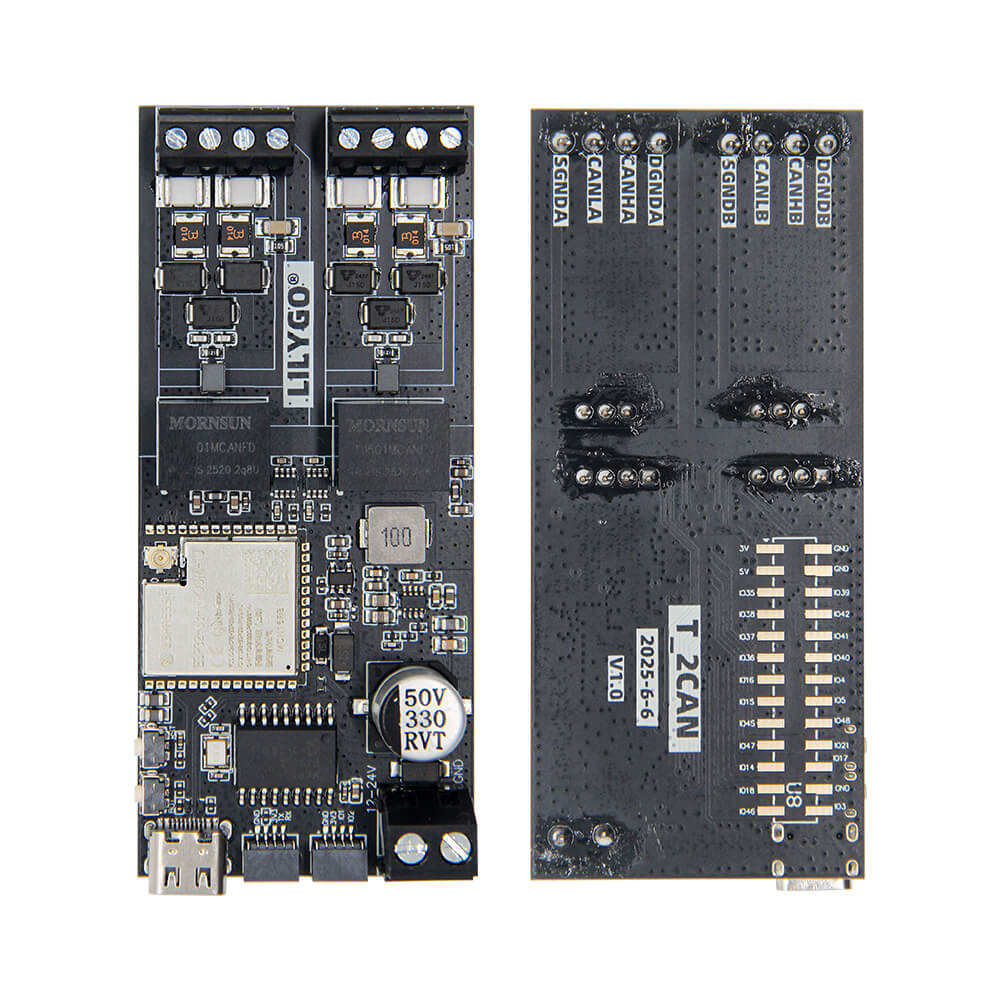

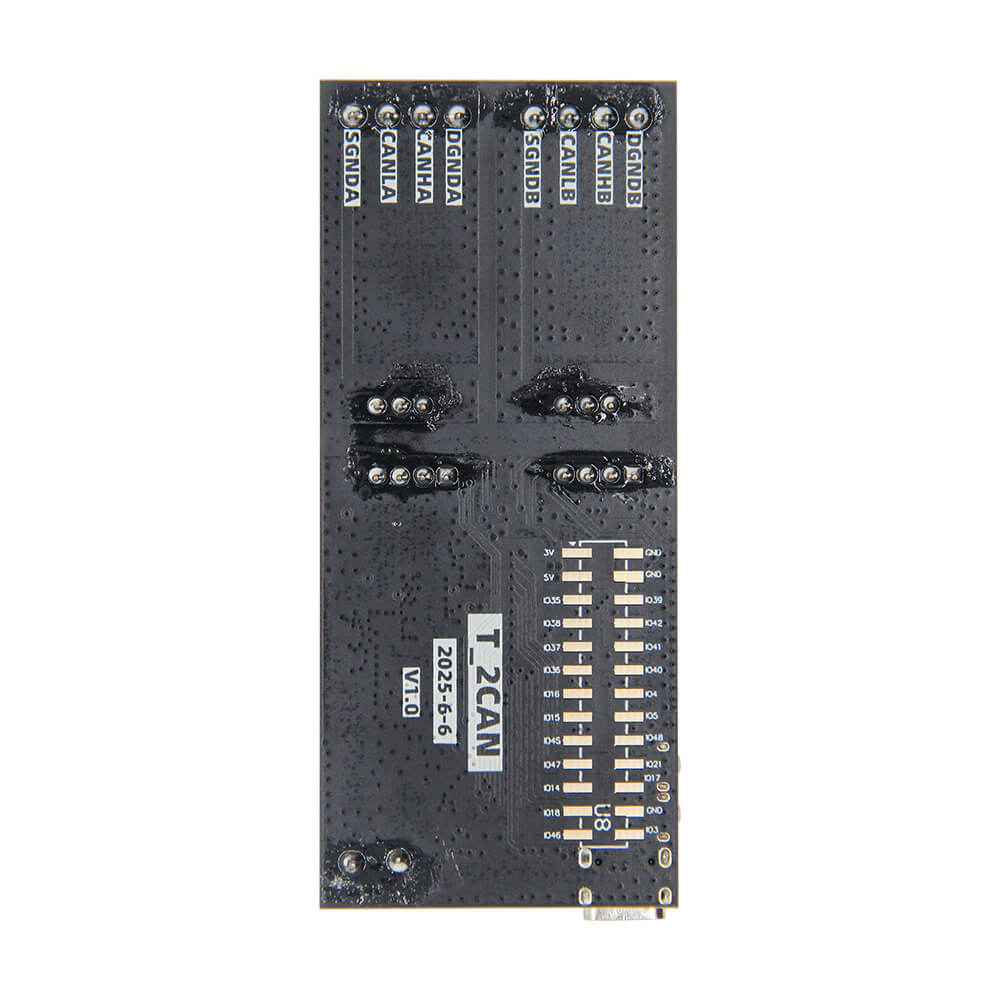

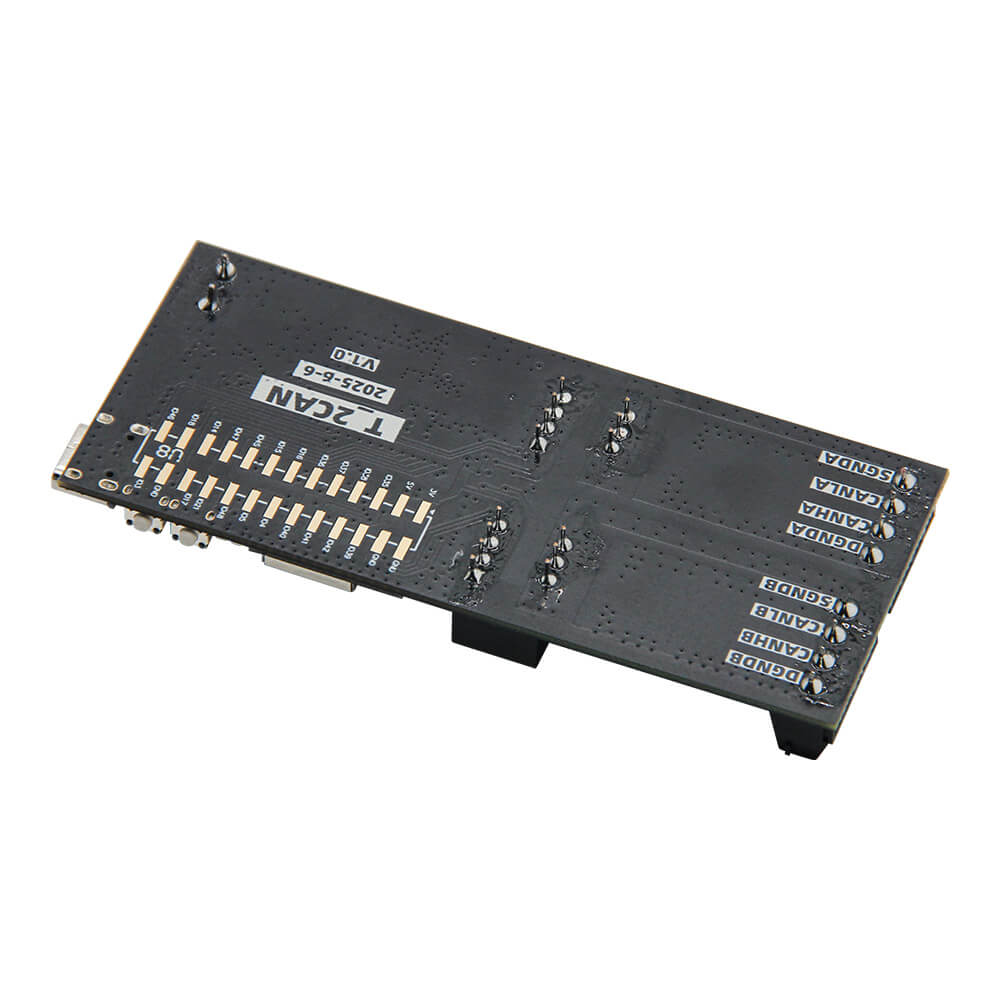

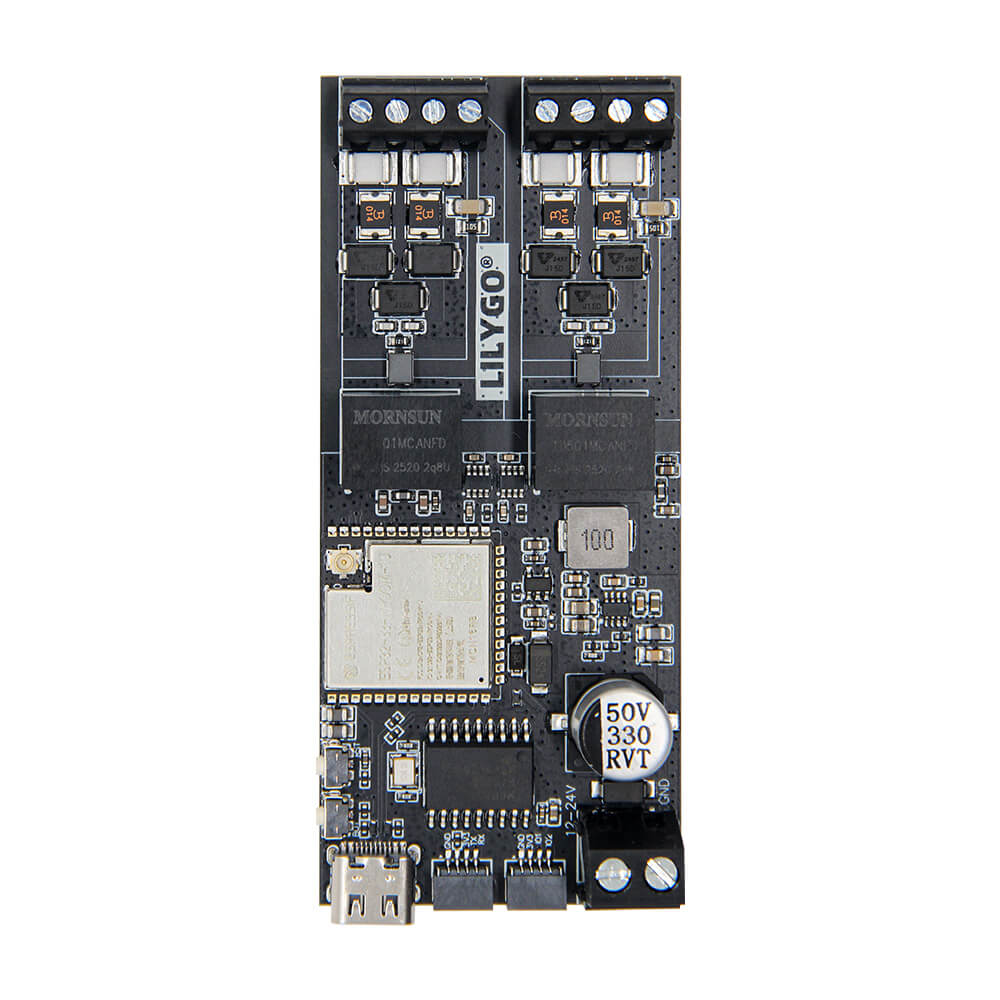

The LILYGO T-2CAN is an ESP32-S3 development board with dual isolated CAN bus interfaces, 16MB Flash, 8MB PSRAM, and Qwiic connectors, designed for vehicle diagnostics and industrial CAN applications.

The LilyGo T-2CAN is a powerful development board based on the ESP32-S3 microcontroller, designed for IoT applications. With support for 2.4G Wi-Fi and Bluetooth Low Energy, it is ideal for creating smart devices and robust networks.

What reviewers say
Pros
  • • Affordable price at $32.98
  • • Qwiic connectors for expansion
  • • Dual isolated CAN bus interfaces
  • • Upgraded with more powerful ESP32-S3 MCU
Cons
  • • Does not support CAN-FD
  • • Uses older CAN V2.0B protocol, not CAN-FD
  • • Lacks adequate ventilation for the ESP chip
  • • Requires separate libraries for different CAN controllers
Distilled from 2 editorial reviews.
featureDual Can BuskindEsp32 Development BoardaudienceDevelopersfeatureWififeatureBluetoothuseVehicle DiagnosticsfeatureQwiic ConnectorsuseIndustrial Automation
Is this listing accurate?

Compare seller offers

Prices and availability provided by sellers.

Ships to:
Price trend
T
TindieUnverified Lowest price
Free shipping
Last checked 48 min ago
$19.99
In stock
Visit store
·
L
LilygoUnverified
Shipping to worldwide
Last checked 1 hr ago
$24.36
Out of stock
Visit store
·
C
Cnx-softwareUnverified Fast shipping
Free shipping
Last checked 49 min ago
$32.98
In stock
Visit store
·

Reviews

Aggregated from 2 review sources.

Average score
—/ 5
Total user reviews
0
Reviewing publications
0
+ 2 qualitative
CNX Software
Source

The LILYGO T-2CAN board is criticized for potentially requiring separate firmware libraries for its two CAN controllers and lacking CAN-FD support, which is becoming standard. A power-related concern is the absence of an ADC for measuring incoming voltage, crucial for automotive applications to mana

Pros
  • • Affordable price at $32.98
  • • Dual isolated CAN bus interfaces
  • • Qwiic connectors for expansion
  • • Software support for Arduino IDE and PlatformIO
  • • Upgraded with more powerful ESP32-S3 MCU
Cons
  • • Does not support CAN-FD
  • • Lacks ADC for measuring incoming voltage (critical for automotive sleep mode)
  • • Lacks ADC for measuring incoming voltage for automotive applications
  • • Requires separate firmware libraries for different CAN controllers
  • • Requires separate libraries for different CAN controllers
  • • Uses older CAN V2.0B protocol, not CAN-FD
GitHub
Source

The initial design of the case is a good starting point for users of the LilyGo T-2CAN, but it could benefit from improved thermal design to ensure proper cooling of the ESP chip.

Cons
  • • Lacks adequate ventilation for the ESP chip

Specifications

Kind
Esp32 Development Board
Use case
Vehicle Diagnostics, Industrial Automation
Feature
Dual Can Bus, Wifi, Bluetooth, Qwiic Connectors
For
Developers
Material
Pcb
Ble
5
Mcu
ESP32-S3
Wi-Fi
802.11 b/g/n
Flash
16MB
Psram
8MB
Width
39mm
Height
18mm
Length
91mm
Can Speed
1Mb/s
Dimensions
91 x 39 x 18mm
Development
Arduino IDE、VS Code
Can Protocol
V2.0B
Flash Memory
16MB
Power Supply
DC 5~12V
Wi-Fi Standard
802.11n
Power Input Dc
12V to 24V
Can Controllers
2
Power Input USB
5V/500mA
Bluetooth Version
5
Input Current USB
500mA
Input Voltage USB
5V
Input Voltage Dc Max
24V
Input Voltage Dc Min
12V
