The Radxa Dual 2.5G Router HAT is noted for being the first to offer two 2.5 Gbps Ethernet ports for routing, alongside NVMe SSD storage, making it a comprehensive expansion for compatible SBCs.
Cons
- • No PoE
Hover to zoom · click to expandTap to expand

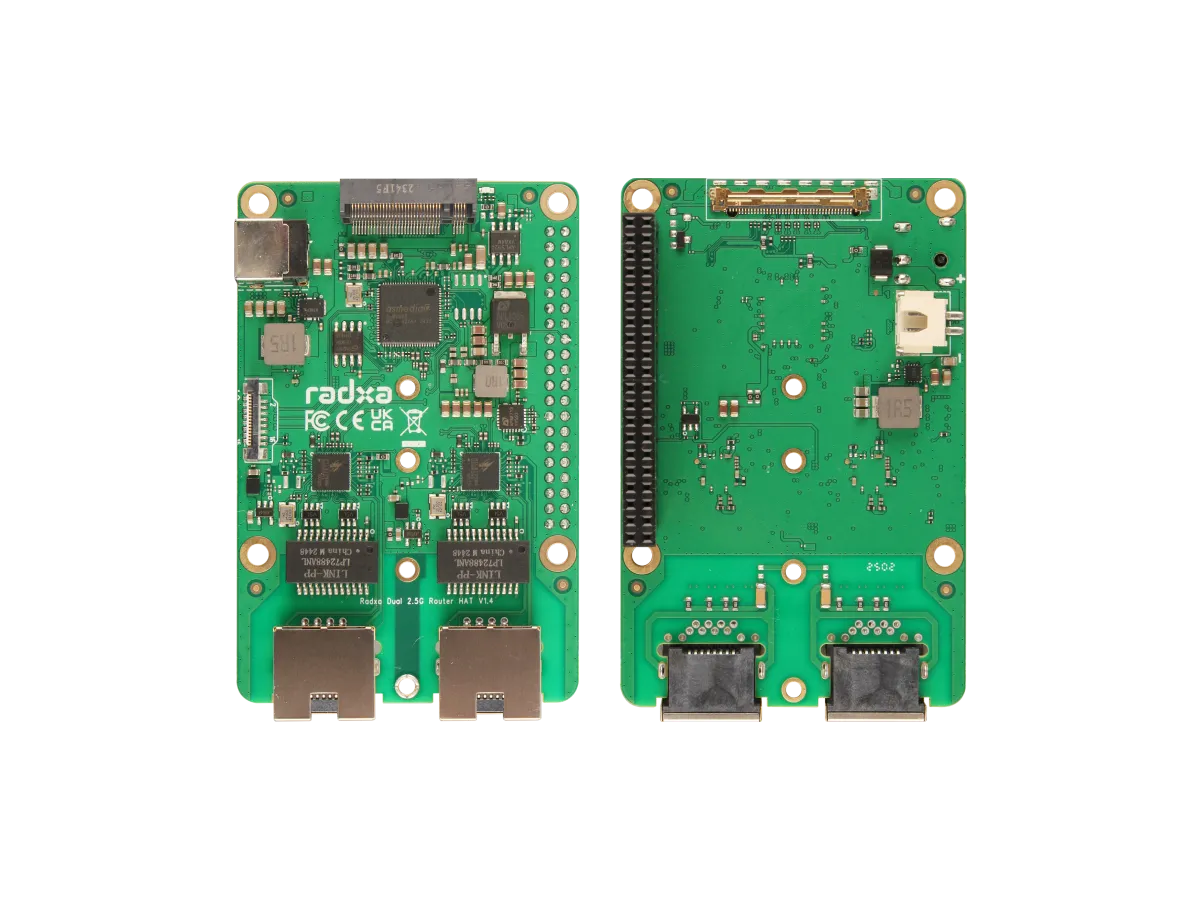

Radxa Dual 2.5G Router Hat
Medium confidence
Why this?
The Radxa Dual 2.5G Router HAT adds two 2.5GbE ports and M.2 NVMe SSD support to…
Good for
- Adds two 2.5 Gigabit Ethernet ports
- Includes M.2 2280 SSD slot for expansion
- Leverages 40-pin GPIO header for connectivity
Skip if
- ×No PoE
- ×No PoE support
- ×Raspberry Pi has an old CPU

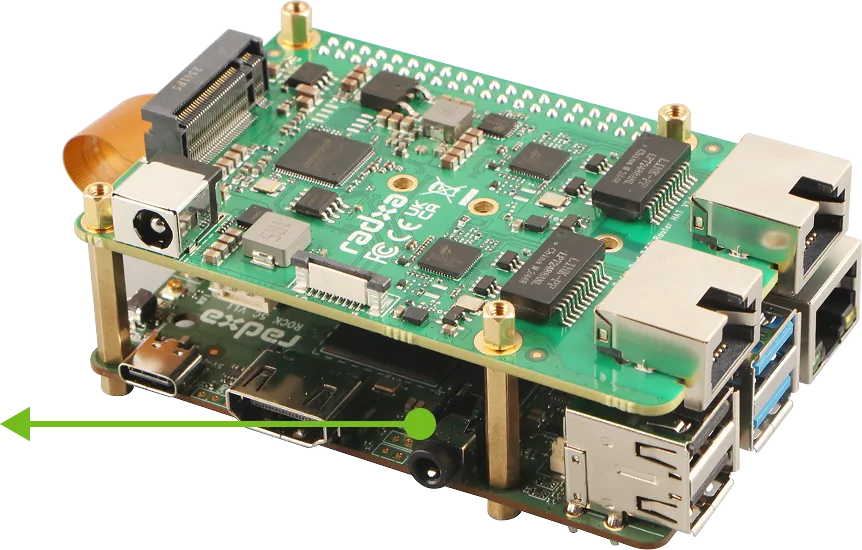

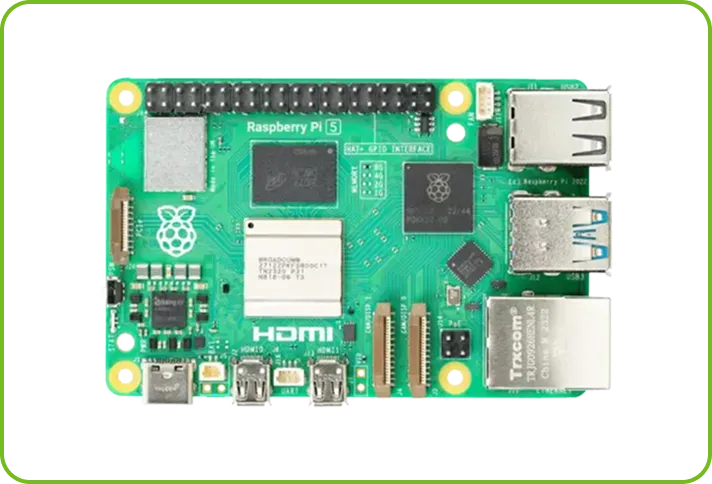

The Radxa Dual 2.5G Router HAT adds two 2.5GbE ports and M.2 NVMe SSD support to Raspberry Pi 5 and compatible SBCs, allowing for routing capabilities and expanded storage.
The Radxa Dual 2.5G Router HAT is an all-in-one networking and storage expansion designed for single-board computers. It features dual 2.5 Gigabit Ethernet ports to significantly boost network speed and provides high-speed NVMe SSD access via an M.2 connector.
What reviewers say
Pros
- • Adds two 2.5 Gigabit Ethernet ports
- • Includes M.2 2280 SSD slot for expansion
- • Leverages 40-pin GPIO header for connectivity
- • Bundles with heatsink to prevent thermal throttling
Cons
- • No PoE
- • Uses Realtek chips instead of Intel for networking
- • Potential cost of Pi 5 plus HAT may allow for other suitable SBCs
Distilled from 3 editorial reviews.
kindNetworking ExpansionfeatureDual EthernetfeatureM2 Nvme SupportuseRouterfeaturePci EaudienceMakerkindStorage ExpansionaudienceHobbyistuseNas
Is this listing accurate?
Compare seller offers
Prices and availability provided by sellers.
Ships to:
Price trend
A
$19.99
In stock
Reviews
Aggregated from 3 review sources.
Average score
—/ 5
Total user reviews
0
Reviewing publications
0
+ 3 qualitative
Source
Liliputing
Cons
- • Potential cost of Pi 5 plus HAT may allow for other suitable SBCs
- • Uses Realtek chips instead of Intel for networking
Notebookcheck
The Radxa Dual 2.5G Router HAT is a valuable accessory for Raspberry Pi 5 users, offering significant upgrades in network speed and storage expansion through its dual 2.5 Gigabit Ethernet ports and M.2 NVMe SSD slot.
Pros
- • Adds two 2.5 Gigabit Ethernet ports
- • Bundles with heatsink to prevent thermal throttling
- • Includes M.2 2280 SSD slot for expansion
- • Leverages 40-pin GPIO header for connectivity
Specifications
- Kind
- Networking Expansion, Storage Expansion
- Use case
- Router, Nas
- Feature
- Dual Ethernet, M2 Nvme Support, Pci E
- For
- Maker, Hobbyist
- Material
- Pcb
- Pcie Gen
- 3
- Dimensions
- 85x56mm
- Pcie Lanes
- 1
- Power Input
- 12V
- M2 Connector
- 2,280
- Pcie Version
- 3.0/2.0
- Ethernet Ports
- 2

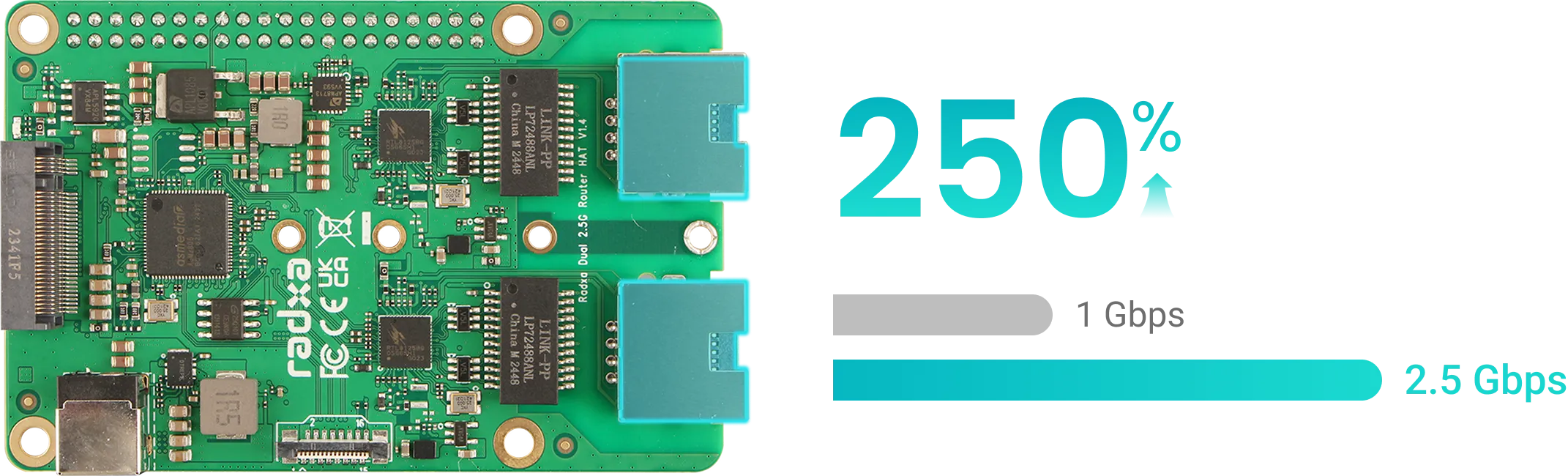

- Ethernet Speed
- 2.5Gbps
- M2 Socket Type
- M-Key
- Pcie Switch Chip
- ASM2806
- Power Input Gpio
- 5V
- M2 Nvme SSD Sizes
- 2230, 2242, 2260, 2280
- Ethernet Controller
- Realtek RTL8125B

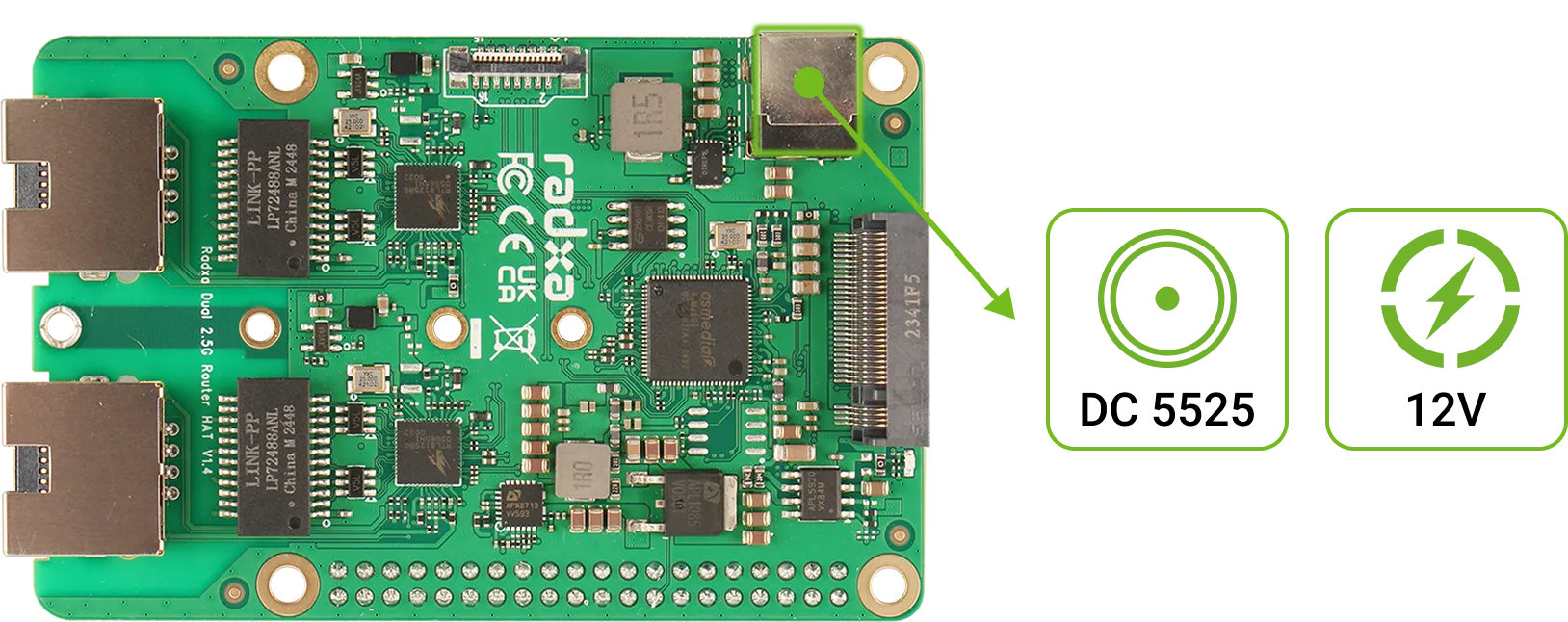

- Power Input Dc Jack
- 12V
- Ethernet Ports Count
- 2
- M2 Nvme Form Factors
- 2230, 2242, 2260, 2280
- M2 Nvme Socket Count
- 1
- Pcie Lanes Downstream
- 4
